Whole Exome Seq Bioinformatics Analysis Sample Figures

Introduction

Whole Exome Sequencing

a. sequence alignment, reads filtering, realignment, quality recalibration, and reads mapping QC

  Normal 1 Tumor 1 Normal 2 Tumor 2 Normal 3 Tumor 3
Reference size 3,095,693,983 3095693983 3,095,693,983 3,095,693,983 3,095,693,983 3,095,693,983
Number of   reads 86,706,324 102627622 109,799,781 83,914,383 115,869,230 80,665,035
Mapped reads 86,587,441 / 99.86% 102,588,905 / 99.96% 109,762,294 / 99.97% 83,877,722 / 99.96% 115,832,856 / 99.97% 80,626,945 / 99.95%
Unmapped reads 118,883 / 0.14% 38,717 / 0.04% 37,487 / 0.03% 36,661 / 0.04% 36,374 / 0.03% 38,090 / 0.05%
Paired reads 86,587,441 / 99.86% 102,588,905 / 99.96% 109,762,294 / 99.97% 83,877,722 / 99.96% 115,832,856 / 99.97% 80,626,945 / 99.95%
Mapped reads,   only first in pair 43,286,063 / 49.92% 51,291,221 / 49.98% 54,880,805 / 49.98% 41,914,696 / 49.95% 57,916,798 / 49.98% 40,300,489 / 49.96%
Mapped reads,   only second in pair 43,301,378 / 49.94% 51,297,684 / 49.98% 54,881,489 / 49.98% 41,963,026 / 50.01% 57,916,058 / 49.98% 40,326,456 / 49.99%
Mapped reads,   both in pair 86,573,278 / 99.85% 102,582,802 / 99.96% 109,755,824 / 99.96% 83,872,753 / 99.95% 115,826,907 / 99.96% 80,621,834 / 99.95%
Mapped reads,   singletons 14,163 / 0.02% 6,103 / 0.01% 6,470 / 0.01% 4,969 / 0.01% 5,949 / 0.01% 5,111 / 0.01%
Read   min/max/mean length 30 / 100 / 99.94 30 / 100 / 99.96 30 / 100 / 99.97 30 / 100 / 99.92 30 / 100 / 99.97 30 / 100 / 99.93
Clipped reads 1,256,415 / 1.45% 1,267,288 / 1.23% 1,334,414 / 1.22% 1,315,628 / 1.57% 1,513,714 / 1.31% 1,162,661 / 1.44%
Duplicated   reads (estimated) 29,861,320 / 34.44% 39,939,833 / 38.92% 41,033,470 / 37.37% 28,890,082 / 34.43% 48,801,888 / 42.12% 28,795,360 / 35.7%
Duplication   rate 32.12% 35.14% 33.94% 31.05% 38.01% 32.21%

This table summarized all read mapping statistics: total reads, mapped reads, un-mapped reads, paired reads, Mapped reads for first pair, second pair, both in pair or singletons. The maximum, minimum and mean read length, and finally the duplication rate of reads.

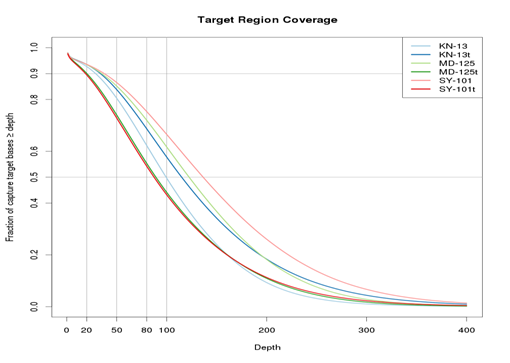

This plot showed good exome coverage of these samples in WES. The average coverage of each sample is more than 80. X-axis is the read depth (coverage) and y –axis is the fraction of target region with depth more than the number in x-axis.

  b. Germline variants, compared to reference genome

  c. Somatic mutations if Tumor-Normal pair (SNP, INDEL, CNV and SNV variant filtering, calling and annotation)

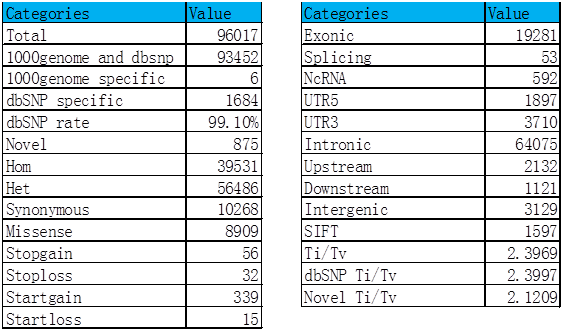

(1) SNP analysis

Sample 1:

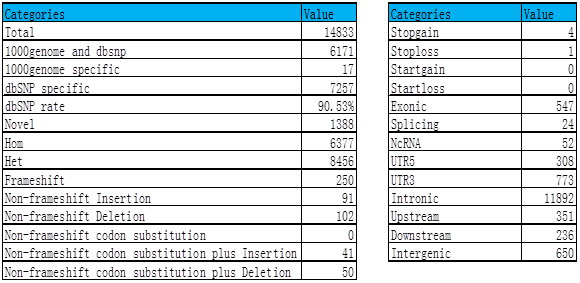

(2) INDEL analysis

Normal sample:




(3) SNV analysis

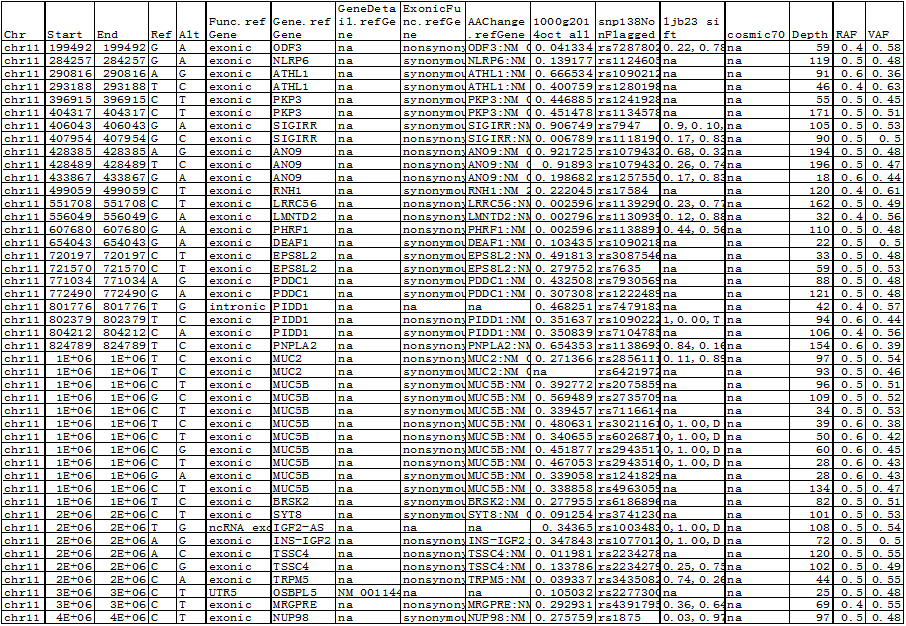

Novel somatic mutations results table:

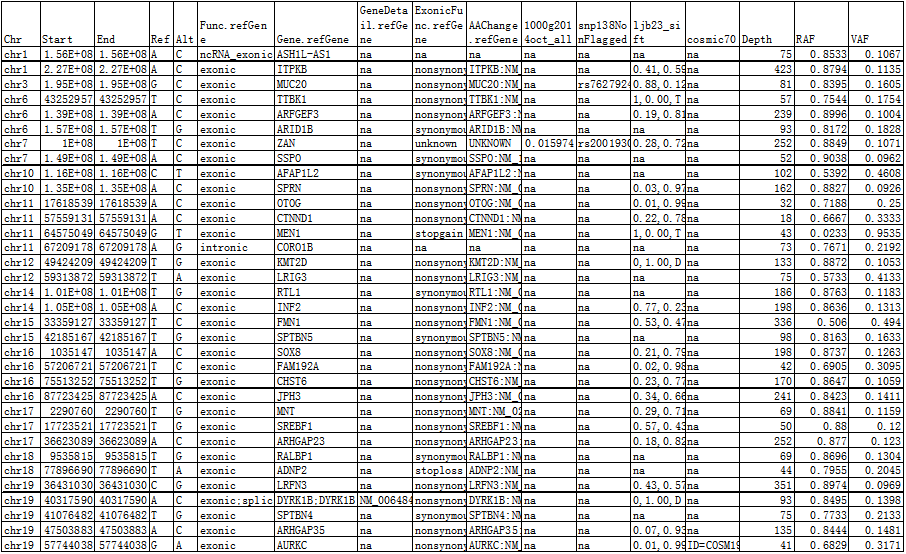

Novel LOH results table:
